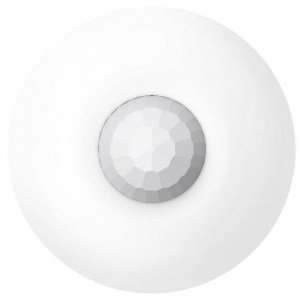

Wireless PIR Ceiling Detector
- Detection Range: 12m / 360°
- SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
| Detection Performance |
| Detection Method |
Passive Infrared |
| Detection Range |
12m |
| Detection Angle |
360° |
| Detection Zones |
172 |
| Detectable Speed |
0.3～2m/s |
| Sensitivity |
Auto;Low |
| White Light Filter |
6500lux |
| Digital Temperature Compensation |
Support |
| Creep Zone Protection |
Support |
| Feature |
| Digital Processing |
Support |
| Sealed Optics |
Support |
| Tamper Protection |
Front;Rear |
| Environment Temperature Indicator |
Support |
| Signal Strength Indicator |
Support |
| Interface |
| Power Switch |
Power Up Enrolling |
| LED Indicator |
Blue(Alarm) |
| Transmission |
| Transmission Technology |
Tri-X Wireless |
| Transmission Method |
Two-Way RF Wireless |
| Transmission Frequency |
433MHz |
| Transmission Security |
AES-128 Encryption |
| Transmission Range(Free Space) |
1Km |
| Frequency Hopping |
Support |
| Enrolling Method |
Power up;Remote ID;QR Code |
| Electrical Characteristics |
| Standard Battery Life |
5 years in work status (being triggered 20 times per day) |
| Power Supply |
Battery Powered |
| Battery Type |
CR123A × 1 |
| Typical Voltage |
3V |
| General |
| Operation Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity |
10% to 90% |
| Dimension(WxHxD) |
φ101.2 mm x 32.9 mm |
| |
109.5g |
| Mounting Height |
2.4 to 4m |
| Mounting Method |
Ceiling |
| Application Scenario |
Indoor |
